How to Calibrate a Miter Saw?
To calibrate a miter saw, you generally need to check and adjust its blade alignment, bevel angles, and miter angles. You will use a reliable square and a few basic tools to ensure cuts are accurate and safe.
Maintaining a properly calibrated miter saw is essential for any woodworking project. An uncalibrated saw can lead to frustrating errors and wasted materials, affecting everything from simple trim work to complex cabinet builds. We found that even a slight misalignment can spoil your hard work.
- Achieve perfect 90-degree cuts.
- Ensure accurate bevel and miter angles.
- Safety Glasses: Protects your eyes from debris.
- Hearing Protection: Saw noise can damage hearing over time.
- Gloves: Protects hands, but ensure they don’t interfere with grip.
- Dust Mask: Reduces inhalation of fine dust particles.
- Combination Square or Engineering Square: Absolutely critical for checking 90-degree angles. Look for one that’s certified accurate. A Swanson Speed Square is also a good option.
- Digital Angle Finder: Very useful for quickly and accurately measuring bevel and miter angles. Many woodworkers consider this a must-have.
- Straightedge: A reliable metal ruler or straight piece of wood helps check fence alignment.
- Wrench Set / Hex Keys: Your saw’s manual will specify what sizes you need for adjusting bolts.
- Wood Scraps: For test cuts to confirm your adjustments.
- Marker or Pencil: To mark your test cuts.
- Make a test cut on a scrap piece of wood. Use a good-sized piece, about 2×4 or larger.
- Measure the cut with your square. Place the square flush against the fence and the blade. Is there a gap?
- Make a small adjustment. If needed, loosen the miter angle locking knob and gently tap the miter adjustment until the square sits perfectly against the blade and fence. Re-tighten.
- Perform another test cut. Repeat steps 1-3 until your square shows a perfect 90-degree angle.
- Look for consistency. Sometimes, if the fence itself is not perfectly straight, you might get inconsistent readings. Check your fence with a straightedge.

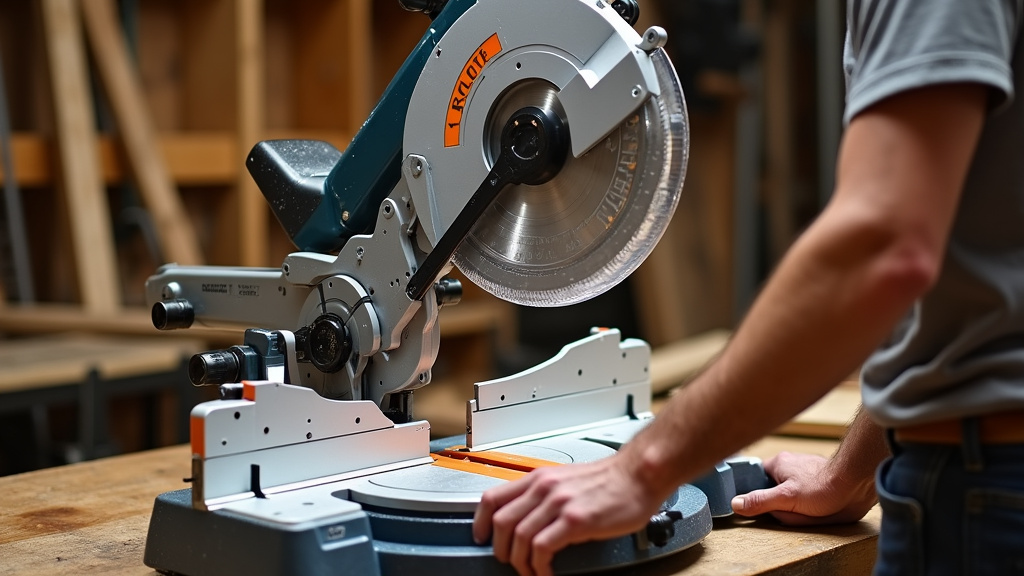

Setting Up Your Miter Saw for Accurate Cuts
Achieving accuracy with your miter saw starts with proper preparation. Before you even think about calibration, make sure your saw is clean, stable, and ready to go.
An accurate cut isn’t just about measurement; it’s about a stable, clean workspace. We found that skipping these initial steps can introduce errors later on, making calibration a frustrating experience.
Safety First: What You Need to Know
Before touching anything on your saw, always prioritize safety. Working with power tools requires constant vigilance. Even during adjustments, you’re interacting with a powerful machine.
Make sure the saw is unplugged. This is non-negotiable. We can’t stress this enough; even a momentary lapse can have serious consequences. Also, wear safety glasses; stray sawdust or metal shavings can be a hazard.
Personal Protective Equipment Checklist
Gathering Your Calibration Tools
Calibration isn’t a complex process, but it does require the right tools. Think of it like a surgeon preparing for an operation – every tool has its purpose. Having them all ready prevents interruptions.
We found that using high-quality measurement tools makes the biggest difference. A cheap square can introduce its own errors, defeating the purpose of calibration.
Essential Tools for Miter Saw Calibration
Pre-Calibration Checks and Cleaning
Before any adjustments, give your saw a good once-over. Dust and debris can interfere with accurate readings. A clean tool is a happy tool, and an accurate tool.
We suggest using a brush and shop vacuum to remove sawdust from the blade, table, fence, and pivot points. Ensure no sawdust is wedged in the blade guard or angle stops.
Inspect and Tighten
Check all the saw’s components for any looseness. The fence, table, and blade guard should be secure. Any wiggle or play will lead to inaccuracies, even after calibration.
If anything feels loose, consult your saw’s manual. There are usually specific tightening procedures. Don’t overtighten, as this could strip threads or damage components.
Calibrating the Miter Saw Blade
The blade is the heart of your miter saw. Its alignment is paramount. You need to ensure it’s truly perpendicular to the fence and square to the table. This is where most errors creep in.
A misaligned blade will produce cuts that are not square or true, no matter how carefully you measure. This step often takes the most care and attention during calibration.
Checking the Blade for Perpendicularity to the Fence (90-Degree Miter)
This is often the first adjustment you’ll make. You want your saw to cut a perfect 90-degree angle when the miter is set to “0”. Think of it as your saw’s home base.
Set your saw to the 0-degree miter detent. Make sure it locks firmly into place. Sometimes, the detent itself might need adjustment, but focus on the blade first.
The “Five Cut” Test Method
Here’s how to check if your blade is truly perpendicular to the fence, which is critical for making perfect 90-degree cuts. Ignore complex jigs for now; this method is reliable (Fine Woodworking).
Many experts say this process might take a few tries. Don’t rush it. The goal is to get a true 90-degree angle. This is the foundation for all other accurate cuts you’ll make.
Ensuring the Blade is Square to the Table (90-Degree Bevel)
Next, you need to check if your blade is square to the table when your bevel angle is set to 0 degrees. Imagine cutting a perfectly upright piece of trim; this determines if it will sit flush.
Set your saw to the 0-degree bevel detent. Just like with miter, make sure it snaps securely into the locked position.
Using a Square for Bevel Accuracy
Place your accurate combination square on the saw table. Let the body of the square rest on the table and the blade of the square butt up against the saw blade.
Look for any gaps. If you see light between the square and the blade, it’s not square. You’ll need to loosen the bevel lock knob and adjust the saw head slightly, then re-tighten.
Some saws have a small adjustment screw for the 0-degree bevel stop. Consult your manual to find yours. This small screw allows for fine-tuning without having to manually set the angle each time.
Calibrating Bevel and Miter Angles
Once your blade is square to the fence and table at 0 degrees, you can move on to other angles. This is where your digital angle finder really shines. It provides quick and precise readings.
Most miter saw scales are pretty accurate from the factory, but they can be tweaked. You want the indicators on your saw to match the actual cut angles you’re making. This prevents guesswork.
Setting the Bevel Scale
Your saw has a scale and pointer for its bevel angle. This helps you set angles like 45 degrees for crown molding or other angled cuts. If the pointer is off, your cuts will be off.
Make sure your blade is still at a perfect 0-degree bevel. Place your digital angle finder on the saw table, zero it out. Then, move it to rest against the saw blade. It should read 0.0 degrees.
Adjusting the Bevel Pointer
If your digital angle finder reads 0.0 degrees, but your saw’s pointer doesn’t quite line up with the 0-degree mark on the scale, you can adjust the pointer.
There’s usually a small screw holding the pointer in place. Loosen it just enough to slide the pointer to the official 0-degree mark on the scale. Gently tighten it back down.
Now, test a 45-degree bevel. Set your saw to 45 degrees using the newly adjusted pointer. Use your digital angle finder on the blade again. It should read close to 45.0 degrees.
| Angle to Calibrate | Primary Tool | Action |
|---|---|---|
| 90° Miter (Blade to Fence) | Combination Square | Adjust miter pivot until square aligns perfectly. |
| 90° Bevel (Blade to Table) | Combination Square / Digital Angle Finder | Adjust bevel stop screw or saw head until square/finder reads 0°. |
| Miter Scale Pointer | Digital Angle Finder | Match pointer to 0° on scale when blade is truly at 90° to fence. |
| Bevel Scale Pointer | Digital Angle Finder | Match pointer to 0° on scale when blade is truly at 90° to table. |
Setting the Miter Scale
Similar to the bevel scale, the miter scale and its pointer need to be correct. This ensures your 45-degree miter cuts for frames or corners are accurate.
With your blade still perpendicular to the fence at 0 degrees, position your digital angle finder against the blade and fence. It should read 90.0 degrees (indicating a 0-degree miter cut).
Adjusting the Miter Pointer
If your saw’s pointer doesn’t quite hit the 0-degree mark on the miter scale, even though your blade is making a perfect 90-degree cut, it’s time to adjust the pointer.
Locate the small screw holding the miter pointer. Loosen it, align the pointer with the 0-degree mark, and re-tighten. This ensures your scale is now aligned with your actual cuts.
Many professional woodworkers re-check this periodically. Even a quarter-degree off can ruin a project when you’re joining two pieces together. Take your time here.
Final Checks and Test Cuts
Once you’ve made all your adjustments, the work isn’t quite done. You need to verify everything with actual wood. After all, the proof is in the cut, right?
This stage is exciting because you get to see the fruits of your labor – hopefully, perfectly square or angled pieces. It builds confidence in your tool.
Performing Test Cuts at Key Angles
Grab a fresh piece of scrap wood. We recommend using something flat and consistent like a plywood offcut or a straight 1×4.
Make a 90-degree miter cut. Check it with your square. Make a 90-degree bevel cut. Check it. Then, try a 45-degree miter and a 45-degree bevel. Use your digital angle finder to verify these angles.
The Importance of a Consistent Test Piece
Using the same piece of wood for all tests helps. If you’re cutting a 45-degree miter, then flipping the wood and cutting another 45-degree miter on the other side, they should meet with no gaps.
This is called a compound miter or a closed corner test. If the two pieces don’t meet perfectly, you might need to go back and fine-tune your 45-degree settings.
Conclusion
You’ve now learned how to tackle the common challenges of miter saw calibration. By understanding each adjustment point, from blade alignment to scale pointers, you ensure every cut is accurate. This mastery means less wasted material and professional-quality results on all your projects. We found that investing this time upfront truly pays off.
Remember, a calibrated saw isn’t just about precision; it’s about confidence in your craft. Take your time, re-check as needed, and enjoy the satisfaction of perfect cuts. Now, grab another scrap piece of wood and put your newly calibrated saw to the test!
Frequently Asked Questions
How often should I calibrate my miter saw?
We recommend calibrating your miter saw whenever you notice inaccuracies in your cuts or after moving the saw. If you use it frequently, a quick check every few months is a good practice. Even small vibrations can throw off settings over time.
Can a new miter saw need calibration?
Absolutely. While manufacturers aim for accuracy, saws can shift during shipping or manufacturing. Always perform a full calibration check on a new saw before its first use. It ensures you start with precise cuts from day one.
What if my saw’s fence isn’t perfectly straight?
A warped or bent fence will cause persistent inaccuracies, even with a calibrated blade. Use a reliable straightedge to check your fence. If it’s not straight, consider replacing it or shimming it carefully to compensate for the bow.
Is it possible to over-tighten adjustment screws during calibration?
Yes, over-tightening can strip threads or even stress components, leading to damage. Always tighten adjustment screws snugly but avoid excessive force. Your saw’s manual may specify torque settings for critical fasteners.
My miter saw has detents. Do I still need to calibrate?
Yes, detents provide quick stops, but they can be slightly off from the factory or wear down. Calibration ensures that when your saw locks into a 0 or 45-degree detent, it’s truly cutting at that exact angle. Always verify detent accuracy with your tools.
